LITE PLAY 3 SLIDES

LIT-62D

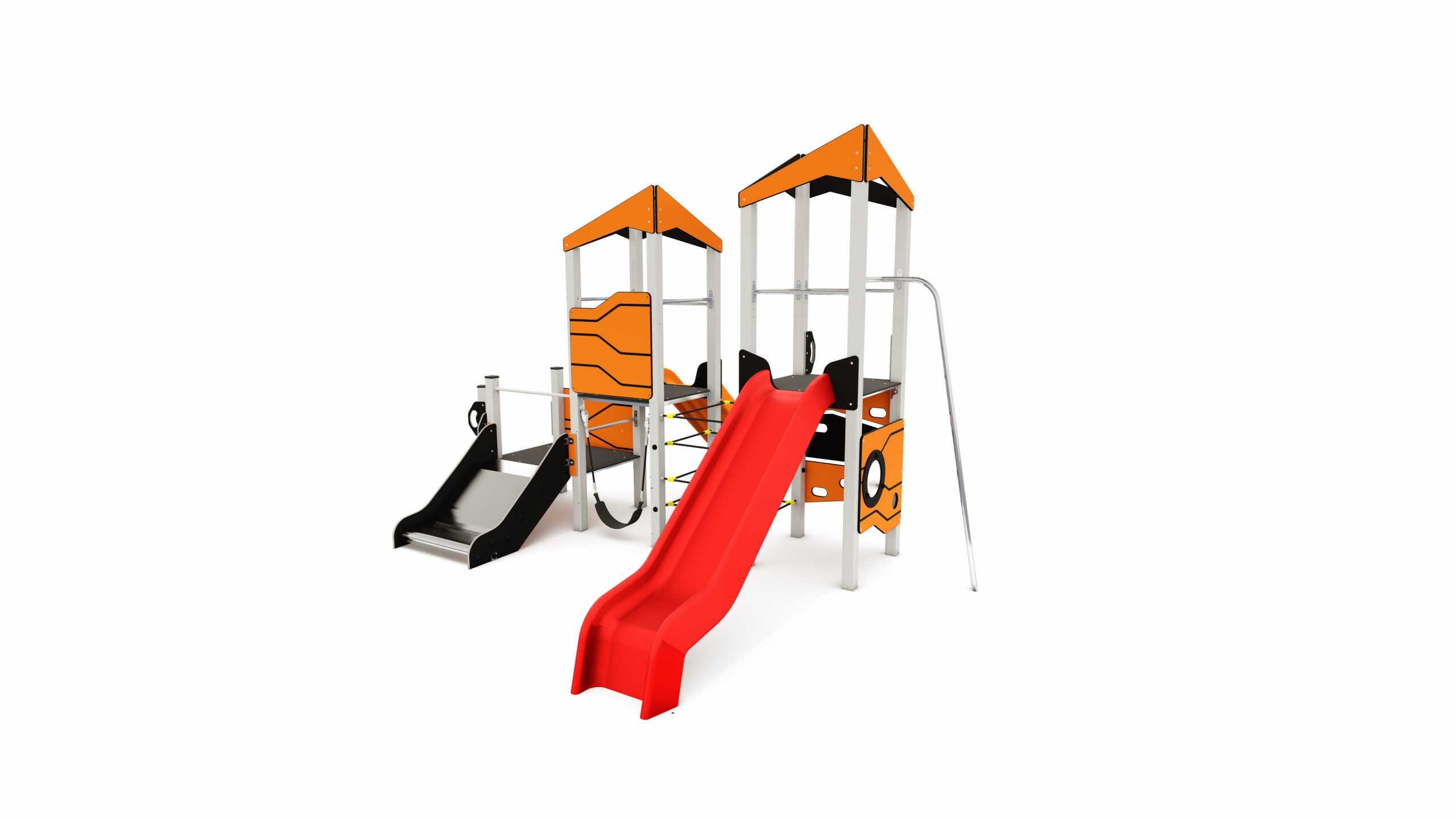

Inclusive Lite set comprising different levels of challenge. Consisting of two towers with rectangular platforms measuring 58, 130 and 150 cm in height and a triangular platform. Manufactured in 15 mm thick non-slip phenolic plywood, equipped with a moisture-resistant protective film. The towers are connected by a challenging rope framework accessible from both the towers and ground level. Impact-resistant, abrasion-resistant, easy-to-clean, UV-protected 13 and 19 mm thick HDPE panels. Structural posts in EN-AW6063 aluminium with anodised finish. The structure of the platforms is made of 40x30x1.5 mm rectangular zinc-plated steel tubing with a polyester powder coating.

Read more

Categories , Normativa EN-1176

Recommended Age
+1 year
Dimensions
562x545x390cm
HIC (cm)
210
Material
Aluminium
Safety Area (m2)
50,1
Inclusive
Inclusive

* Structure EN-AW 6063 aluminium, anodised

* Panels 13 and 19 mm HDPE (high-density polyethylene)

* Platform 15 mm non-slip phenolic plywood

* Slide Stainless steel 58 cm + polyethylene 130 cm + polyethylene 150 cm

* Bars Stainless steel

TECHNICAL SPECIFICATIONS
PLAN
